NOTE:
Black staining from piston seal wear may show on caliper bore walls and piston. This staining is normal. DO NOT disassemble power assist servo as parts are not available.

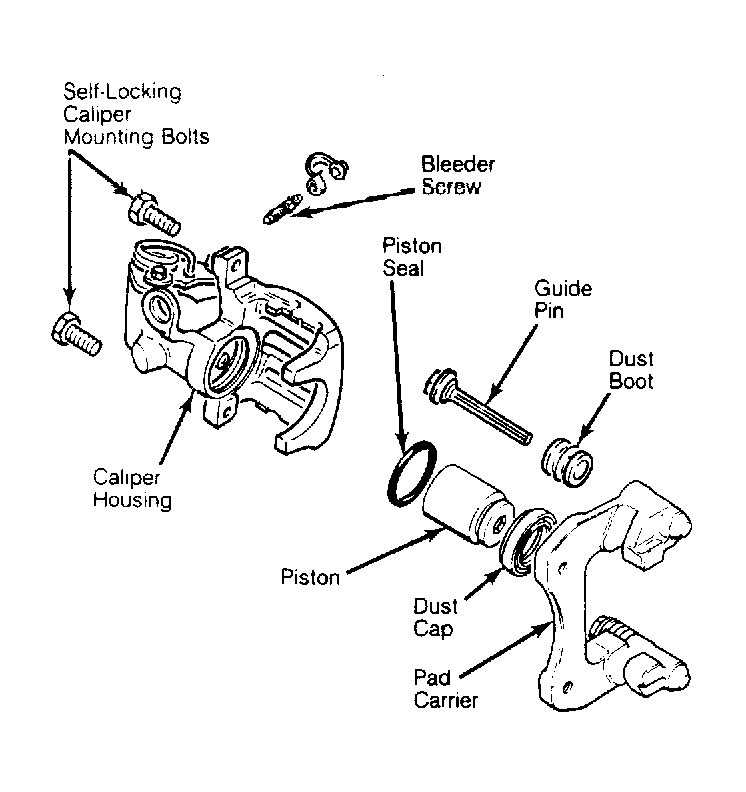

Fig 1: Identifying Caliper Components (Typical)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

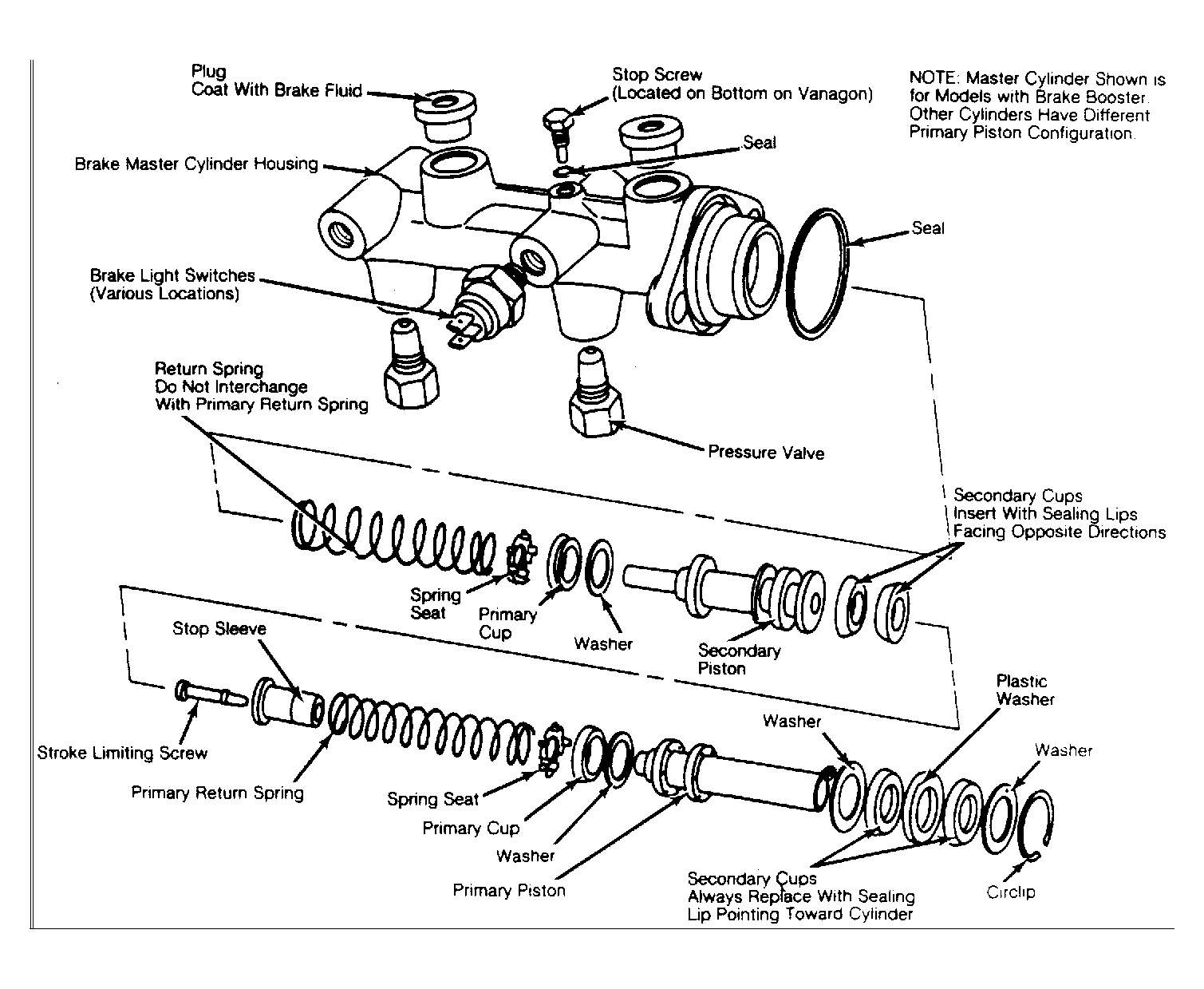

Fig 2: Identifying Power Assist Master Cylinder Components
