Printed Circuit Connectors
Printed Circuit Connectors

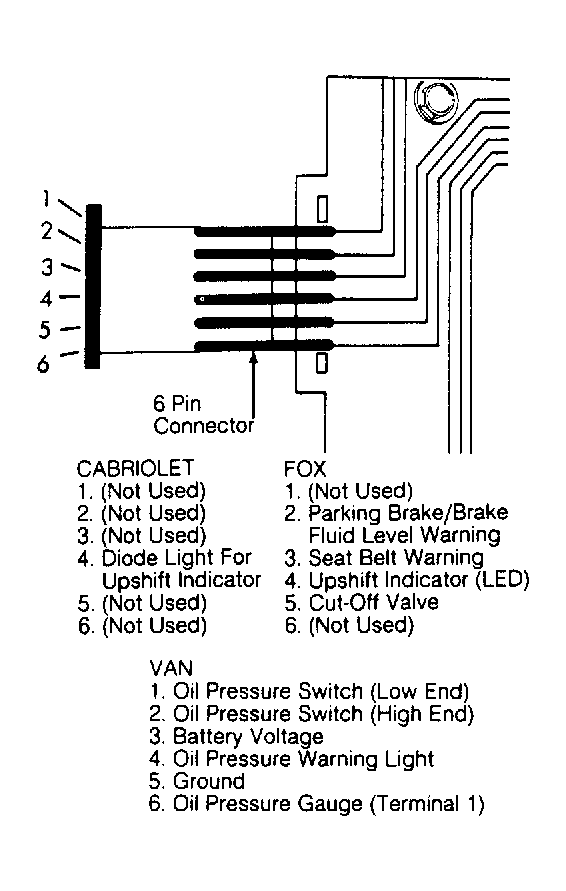

Fig 1: Identifying Printed Circuit Connector (6 Pin)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

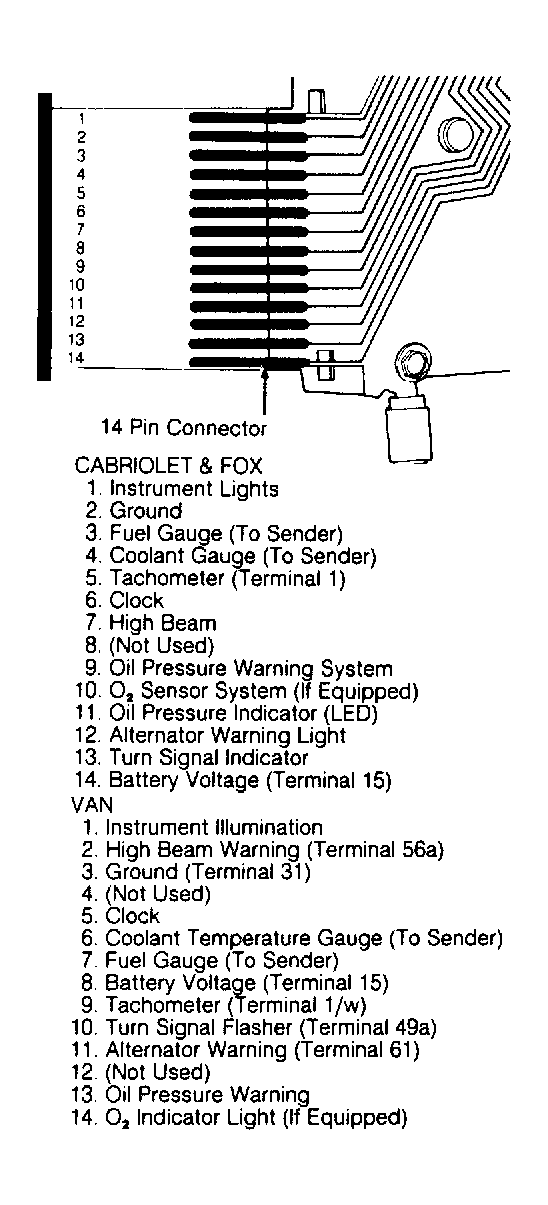

Fig 2: Identifying Printed Circuit Connector (14 Pin)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

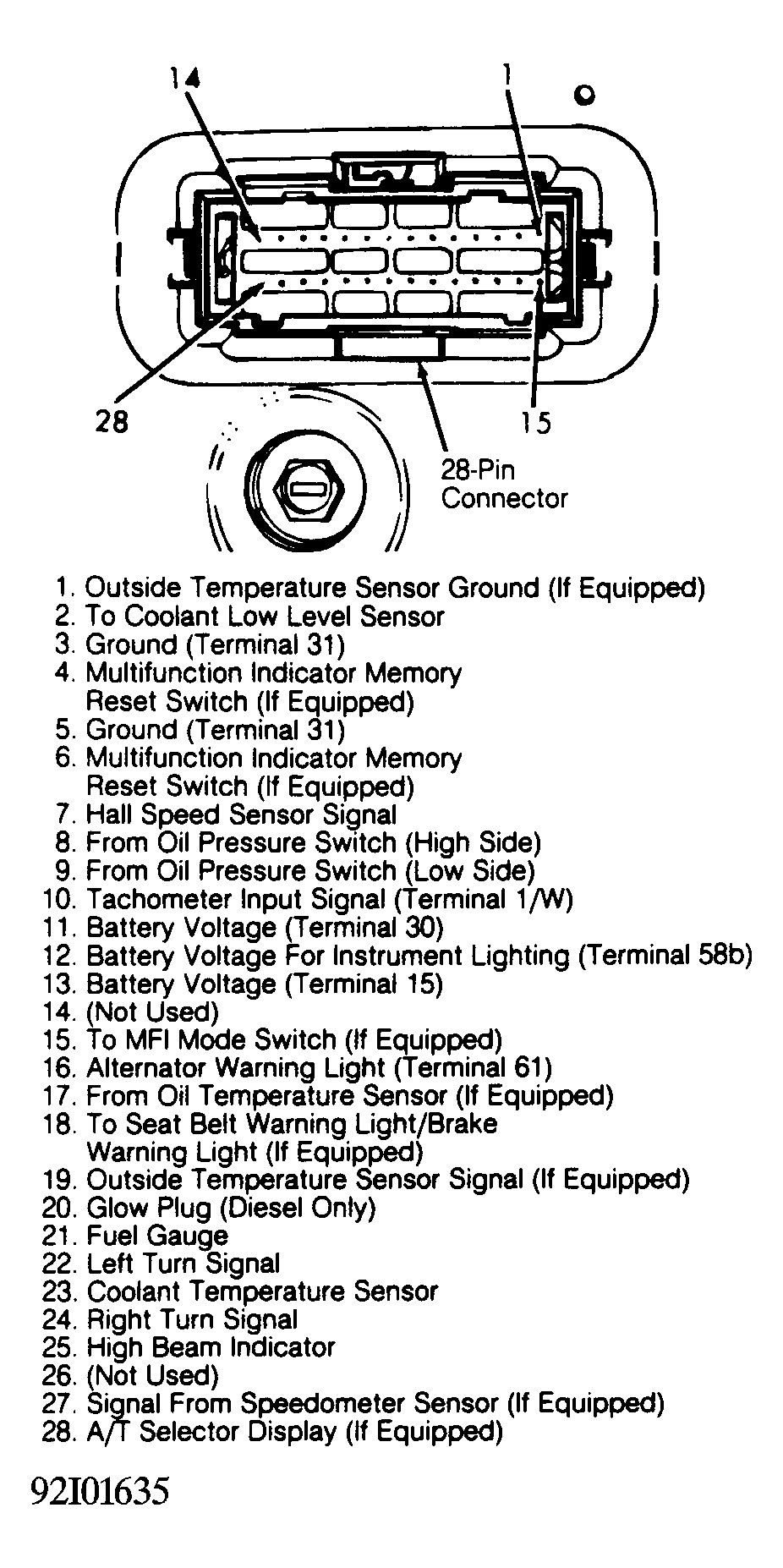

Fig 3: Identifying Printed Circuit Connector (28 Pin)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
