Description & Operation

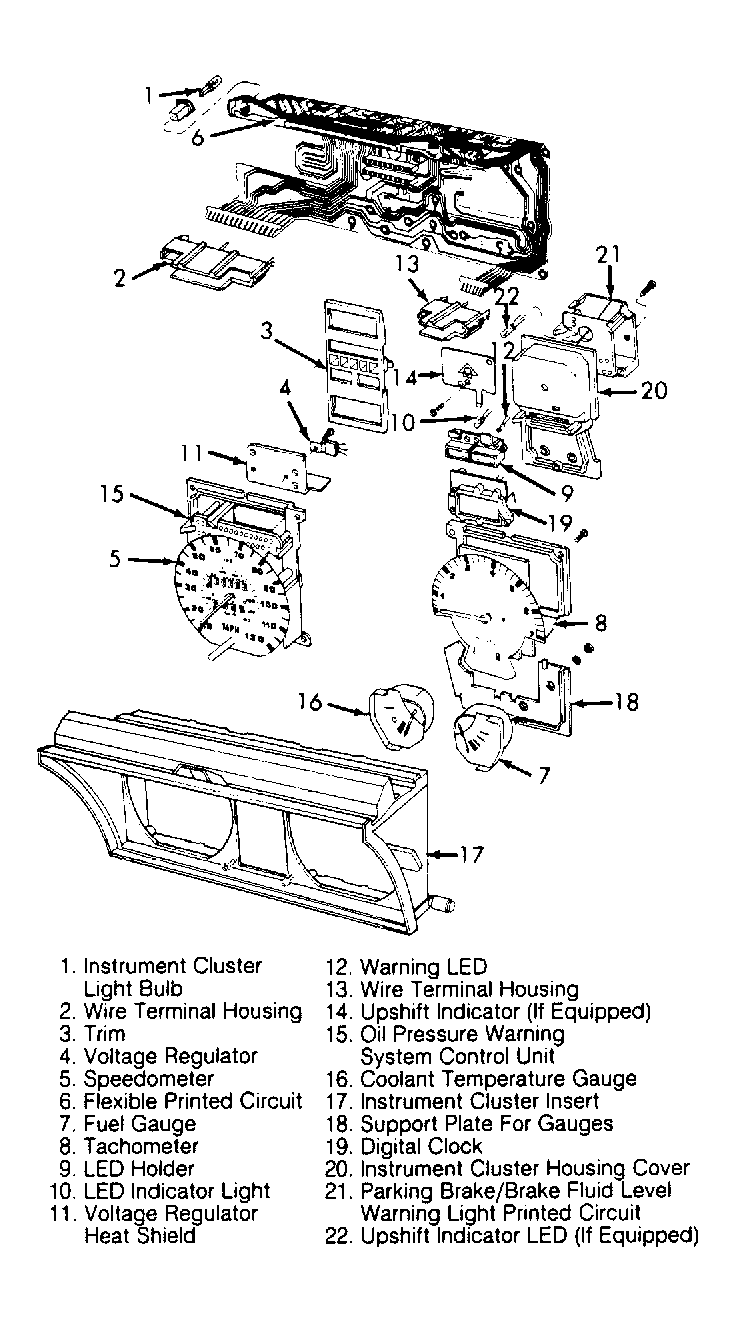

Instrument cluster for most models includes speedometer, fuel gauge and temperature gauge. Optional instruments include clock, tachometer, voltmeter and oil temperature gauge. See Figure.

Printed circuit provides voltage to gauges. A voltage regulator attached to printed circuit controls voltage to fuel and temperature gauges. Most warning lights are a Light Emitting Diode (LED). To replace diode, pull from printed circuit socket.
