Removal (4-Cyl. Engine)
WARNING: This page is about a different car, the 1983 Volkswagen Vanagon, 1983 Volkswagen Rabbit, 1983 Volkswagen Quantum, 1983 Volkswagen Pickup, and 1983 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Remove injection pump belt. Remove injection pipes and cover fuel outlets to prevent contamination. Remove solenoid wire, hoses and control cables from pump.

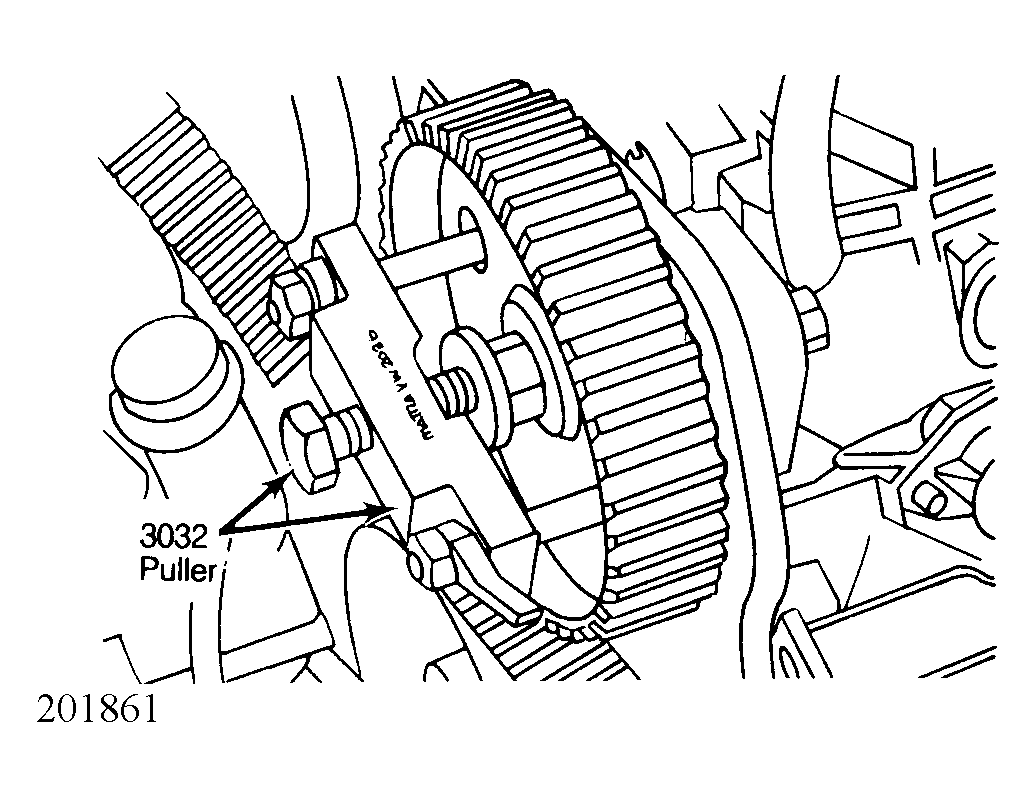

- Insert pump sprocket locking tool (2064) and remove sprocket bolt. Use puller (3032 or VW 203b) to remove pump sprocket. Place puller so jaws are at a right angle to the bar and pointing in the direction of spindle rotation. Apply light tension to puller.
- Strike puller spindle head lightly to loosen sprocket from the shaft. Do not pry on sprocket with bar or lever. Remove pump mounting bolts and remove pump from engine.
