Removal (Vanagon)

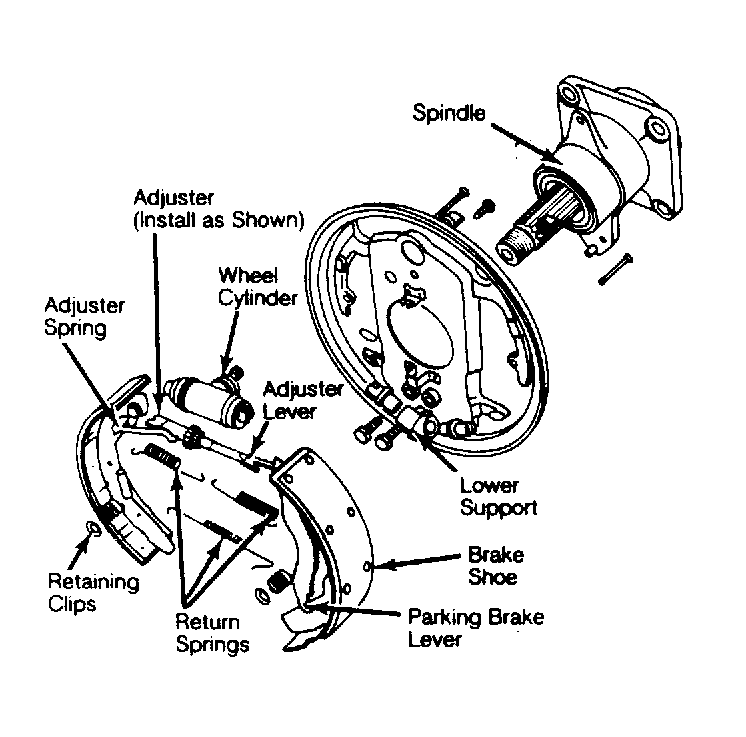

- With wheel and drum removed, remove hold-down springs, and pins. Disconnect parking brake cable from lever on brake shoe. Remove lower return spring, and adjuster spring.
- Move brake shoes out of lower support, and remove return springs. Remove brake shoes as an assembly from backing plate without pulling pistons out of wheel cylinder.
- Separate brake shoes, and disconnect parking brake lever from brake shoe. Remove lower support bolts and support.
