Wheel Bearing

Tighten hub nut firmly to seat bearing while turning hub. Wheel bearing is correctly adjusted when thrust washer can be moved slightly with a screwdriver and finger pressure. After adjustment, peen flange of hub nut into stub axle shaft recess.

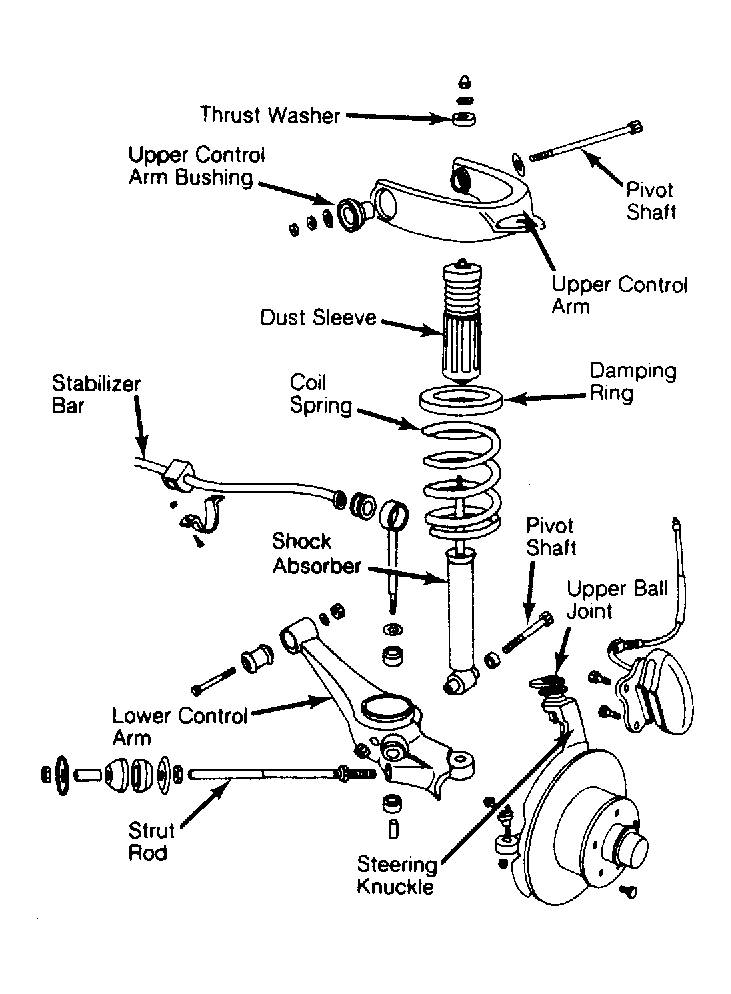

Fig 1: Exploded View of Front Suspension
G58580
