Axle Shafts: Removal
- Remove hub cap. Loosen axle shaft nut. Raise and support vehicle. Remove axle nut and wheel. Disconnect and remove exhaust pipe from exhaust manifold and transaxle as required. Remove Allen bolts connecting inner CV joint to differential case drive flange.
- On all models, mark position of both ball joint flanges on control arms. Remove ball joint from control arm and pull pivot mounting outward while removing axle shaft. Press axle shaft out of hub and guide past transaxle.
NOTE:

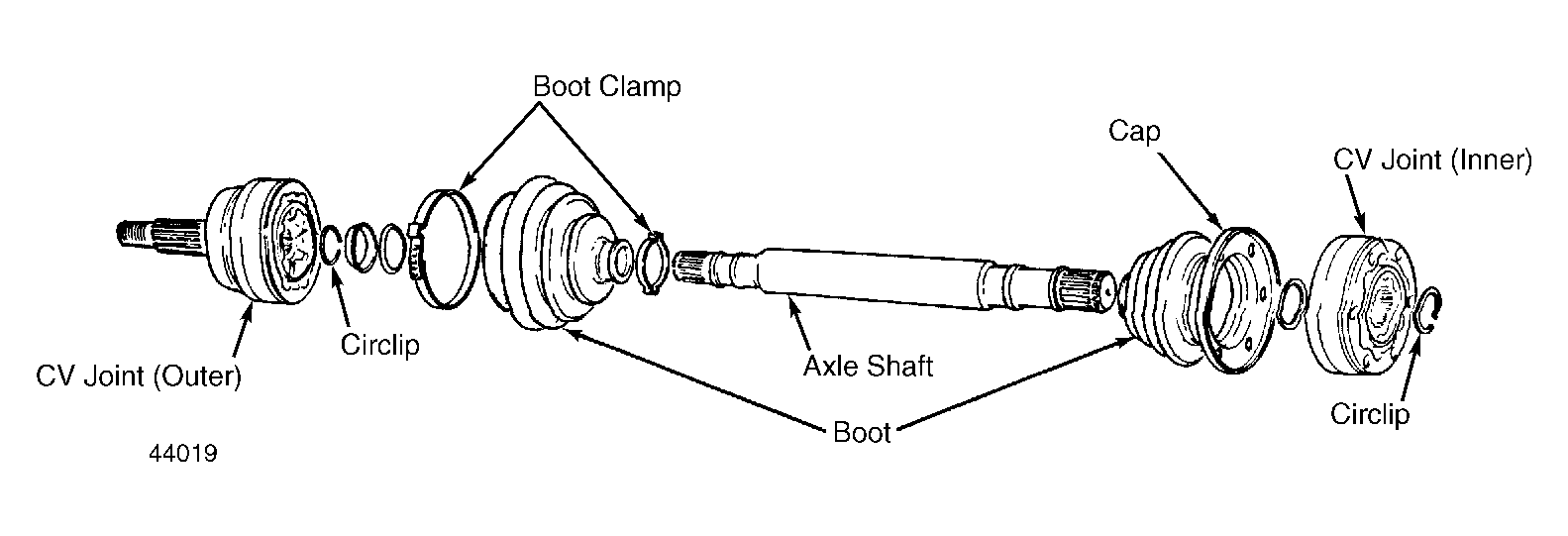

Axle shafts should be disassembled ONLY to replace defective rubber boots. If boots are replaced, check all components for wear or damage and replace as complete assembly.
