Front Disc Brake Pads: Notes

NOTE: Teves, Girling or Kelsey-Hayes calipers may be used on front disc brakes. Quantum is equipped with new type Girling calipers. Disc pads are interchangeable between Teves and Girling calipers only.

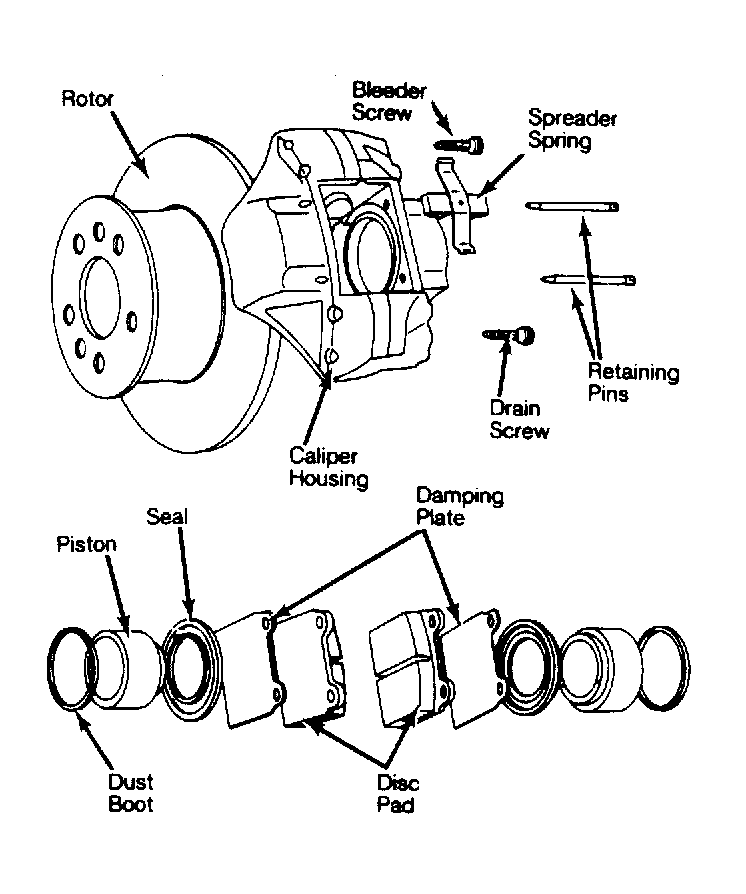

Fig 1: Teves Disc Brake Assembly (Vanagon)
G50176
