Suspension Strut & Coil Spring: Inspection

Hand check shock absorbers for even resistance through entire piston stroke. Worn shock absorbers cannot be overhauled.

NOTE: If a coil spring is being replaced, ensure that paint stripe color code on replacement spring matches original spring code.

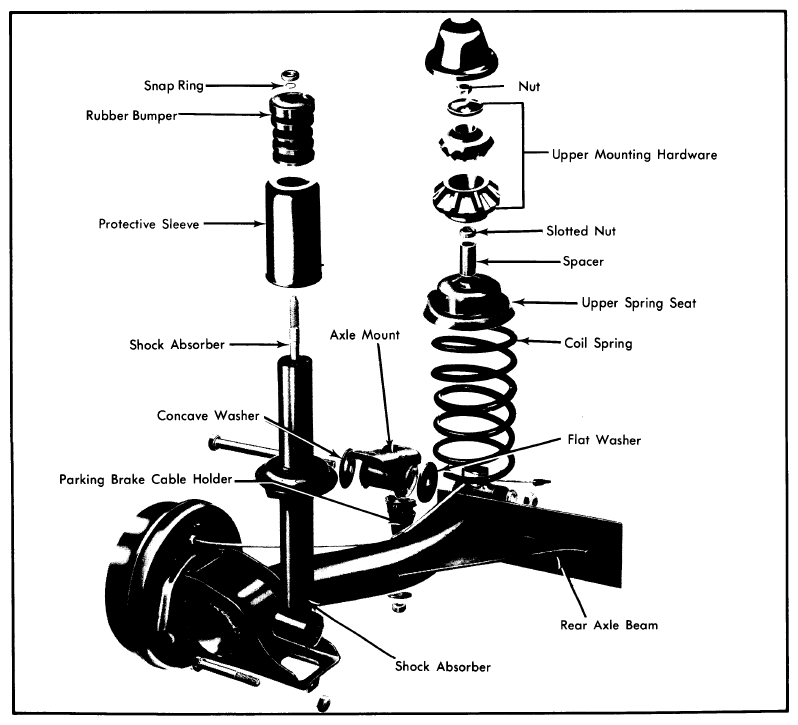

Fig 1: Exploded View Of Rear Suspension Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
