Suspension Strut & Coil Spring: Inspection

  1. Hand check shock absorber for even resistance through entire piston stroke. Worn shock absorbers cannot be overhauled.
    NOTE: If a coil spring is being replaced, ensure that paint stripe color code on replacement spring matches original spring code.

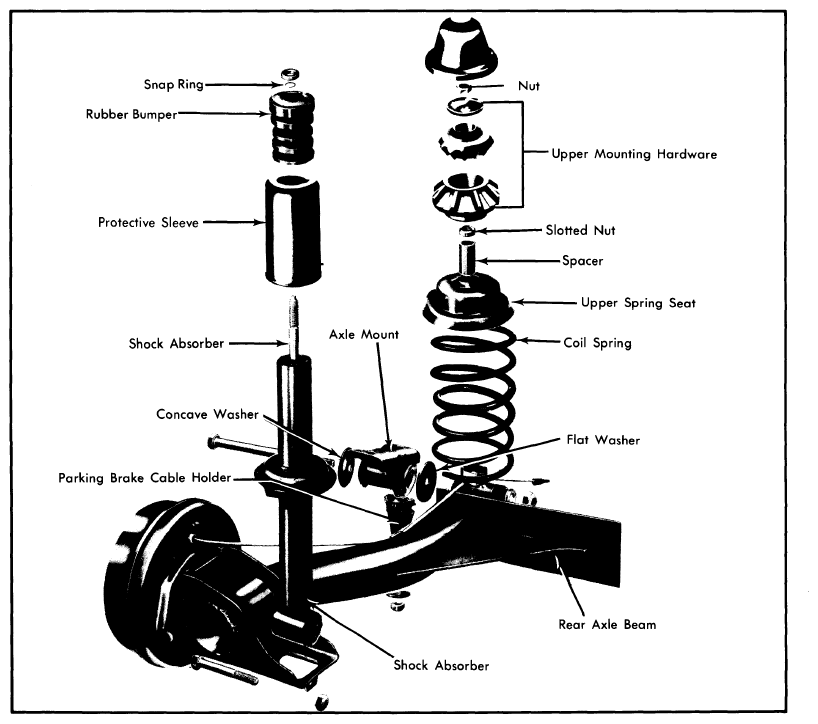

    Fig 1: Exploded View of Rear Suspension Components
    G09322907Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
