Instrument Panel Center Air Outlet Duct Removal And Installation/Replacement

Mobile Repair Possible:  No

Removal Procedure:

1. Remove the instrument panel assembly. Refer to INSTRUMENT PANEL ASSEMBLY REMOVAL AND INSTALLATION/REPLACEMENT

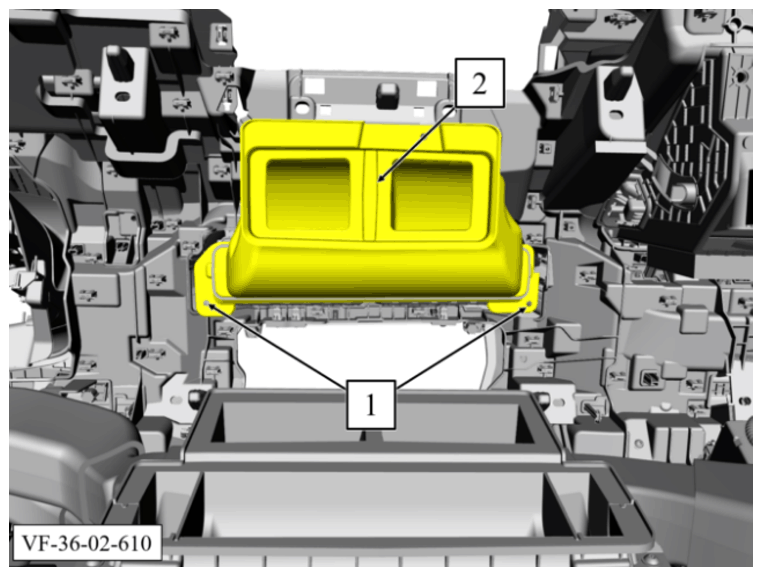

   Courtesy of VINFAST, LLC

2. Remove 2 screws (1).

   Torque: 1.8 Nm

3. Remove instrument panel center air outlet duct (2) to the front.

   Installation Procedure:

4. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

5. Remove the instrument panel assembly. Refer to INSTRUMENT PANEL ASSEMBLY REMOVAL AND INSTALLATION/REPLACEMENT
