Underbody Front Air Shield Removal And Installation/Replacement

Mobile Repair Possible:  No

Removal Procedure:

1. Lift the vehicle. Refer to LIFTING AND JACKING THE VEHICLE

   Courtesy of VINFAST, LLC

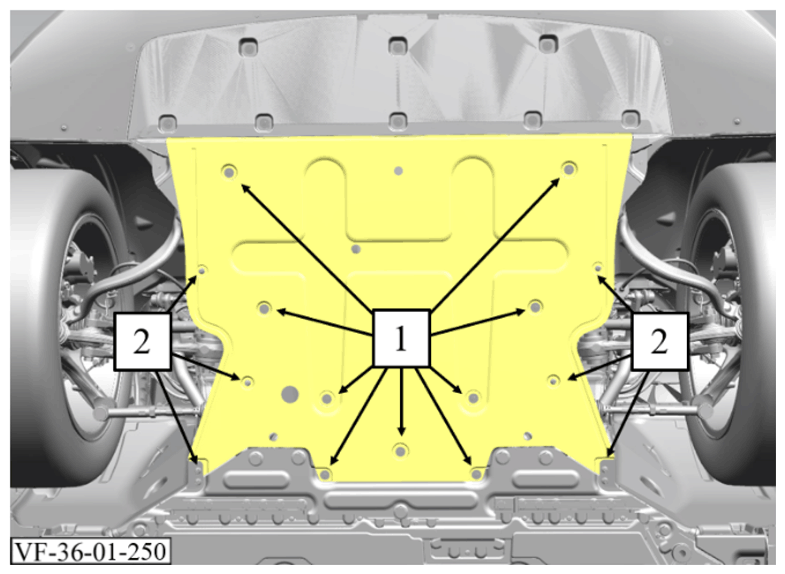

2. Remove 9 bolts (1).

   Torque: 2.6 Nm

3. Remove 6 expanding rivets (2).
4. Remove underbody front air shield (4).

Installation Procedure:

1. Installation is the reverse of removal procedure. All fasteners must be tightened to torque specification!
