Mode Valve Actuator Removal And Installation/Replacement And Cam Alignment

Mobile Repair Possible:  Van/Car

Overview:

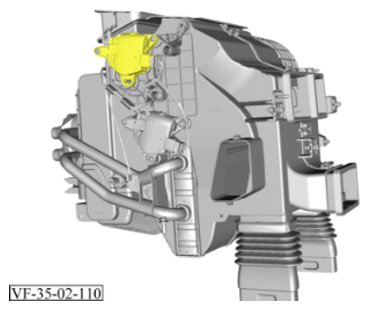

Fig 1: Mode Valve Actuator Components Location

Courtesy of VINFAST, LLC

Removal Procedure:

1. Remove driver knee airbag module. Refer to DRIVER KNEE AIRBAGMODULE REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

2. Remove bolt (1).

   Torque: 5 Nm

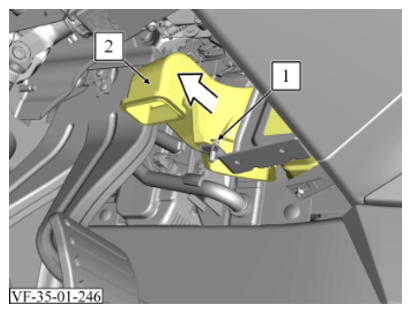

3. Remove the legroom air vent (1) in arrow direction.
4. Unlock and disconnect electrical connector (1).
5. Remove 2 screws (1).

   Torque: 1 Nm

6. Remove mode valve actuator.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following All fasteners must be tightened to torque specification!
2. Install driver knee airbag module. Refer to DRIVER KNEE AIRBAGMODULE REMOVAL AND INSTALLATION/REPLACEMENT
3. Diagnostics, Programming and Setup. Refer to DIAGNOSTICS, PROGRAMMING AND SETUP USING IDS IN SERVICE
