HVAC Climate Control Module Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Overview:

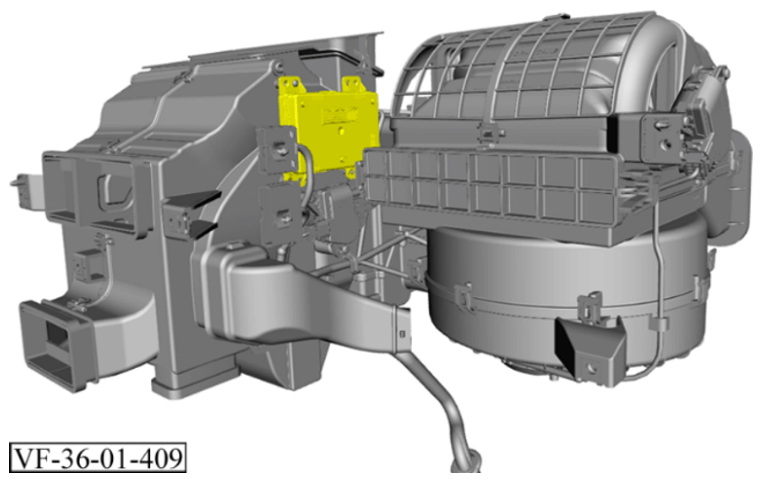

Fig 1: HVAC Climate Control Module Components Location

Courtesy of VINFAST, LLC

Removal Procedure:

1. Disconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
2. Remove Gateway Module. Refer to GATEWAY MODULE REMOVAL AND INSTALLATION/REPLACEMENT
3. Remove the footwell duct (1) in arrow direction.

   Courtesy of VINFAST, LLC

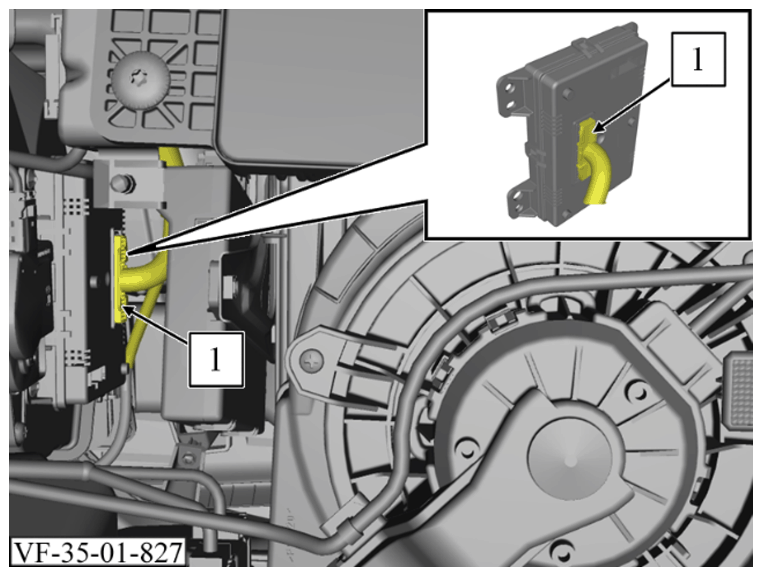

4. Unlock and disconnect the electrical connector (1).

   Courtesy of VINFAST, LLC

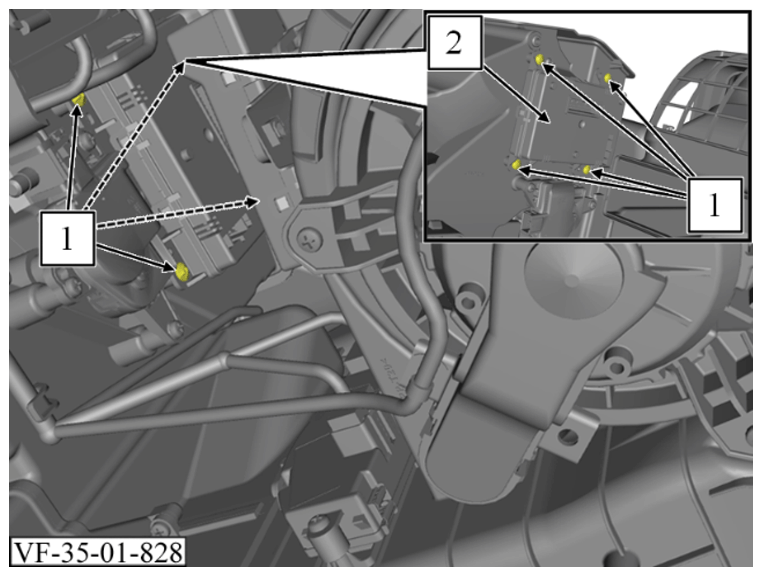

5. Remove 4 screws (1).

   Torque: 1.2 Nm

6. Remove HVAC climate control module (2) downwards.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

2. Install Gateway Module. Refer to GATEWAY MODULE REMOVAL AND INSTALLATION/REPLACEMENT
3. Reconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
4. Diagnostics, Programming and Setup. Refer to DIAGNOSTICS, PROGRAMMING AND SETUP USING IDS IN SERVICE
