Instrument Panel Under Tray Removal And Installation/Replacement (Passenger)

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Disconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION

   Courtesy of VINFAST, LLC

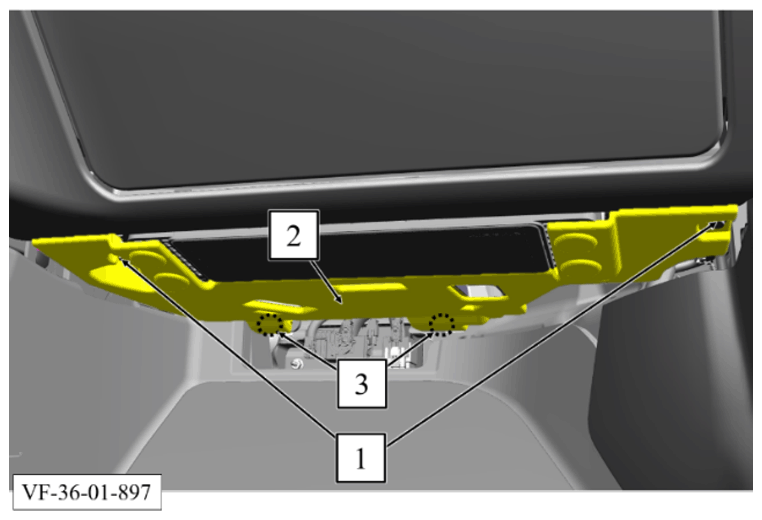

2. Remove the bolt (1).

   Torque: 8 Nm

3. Fold down the fairing (2) and loosen both latches (3).

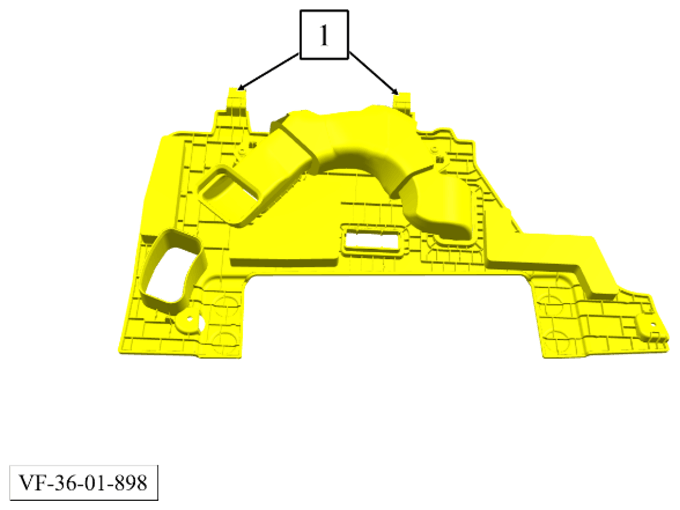

   Installation note: The footwell outflow passenger side will also be removed.

   Courtesy of VINFAST, LLC

4. Unlock and disconnect electrical connector (1) of footwell lamp.
5. Remove instrument panel under tray (2).

Replacement Procedure:

Courtesy of VINFAST, LLC

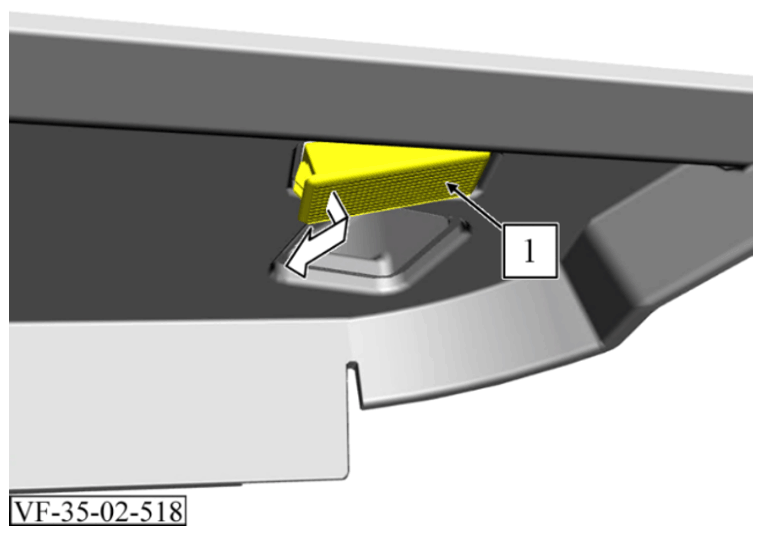

1. Unclip and remove the footwell lamp (1) in the direction of the arrow.

   Courtesy of VINFAST, LLC

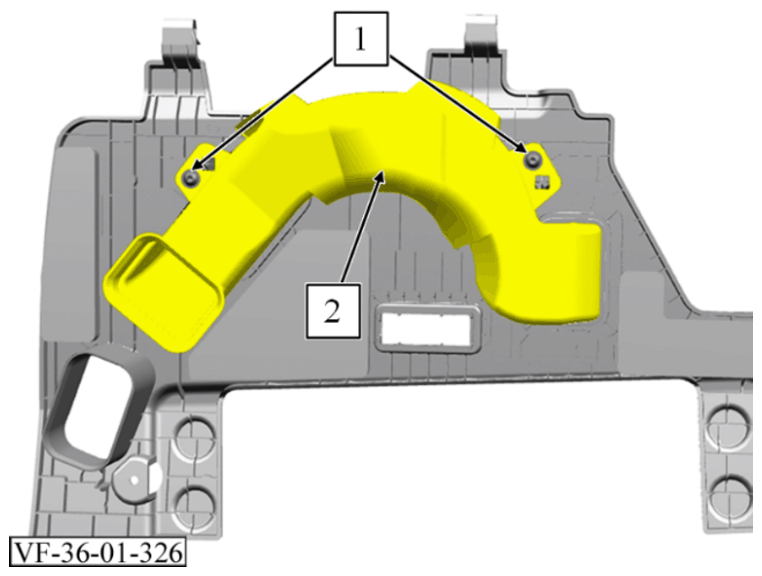

2. Remove 2 screws (1).

   Torque: 3 Nm

3. Remove front footwell duct (2).

Installation Procedure:

Courtesy of VINFAST, LLC

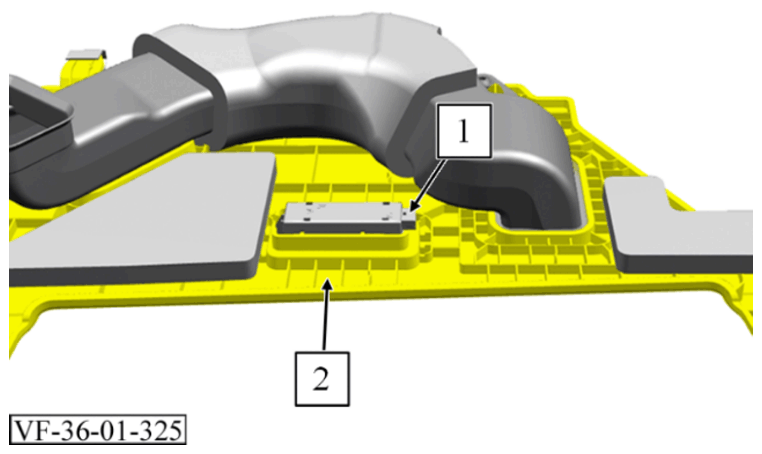

Installations note: The rear clips (1) must be engaged.

1. Installation is the reverse of removal procedure, noting the following. All fasteners must be tightened to torque specification!
