Electric Park Brake Switch Bezel Removal And Installation/Replacement

Mobile Repair Possible:  No

Overview:

Electric Park Brake Switch Bezel (1).

Removal Procedure:

1. Remove Electric Park Brake Switch. Refer to ELECTRIC PARK BRAKE SWITCH BEZEL REMOVAL AND INSTALLATION/REPLACEMENT

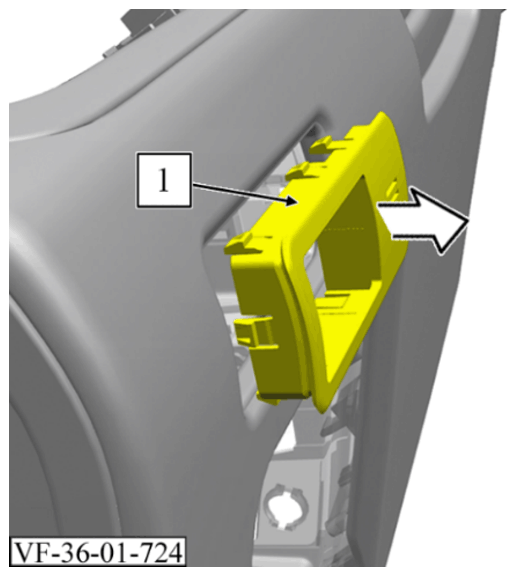

2. Carefully bend and release the retaining clips (1).

   Courtesy of VINFAST, LLC

3. Pull the bezel (1) in the direction of the arrow to remove it.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.
2. Install Electric Park Brake Switch. Refer to ELECTRIC PARK BRAKE SWITCH BEZEL REMOVAL AND INSTALLATION/REPLACEMENT
