Front Floor Console Side Lower Trim Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

1. Remove Front Floor Console Side Upper Trim. Refer to FRONT FLOOR CONSOLE SIDE UPPER TRIM REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

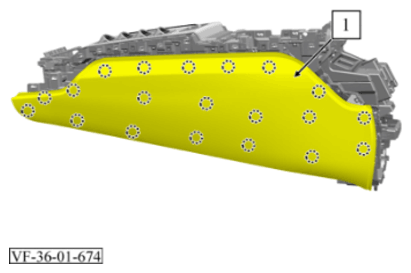

2. Unclip the side panel (1) at the marked points and remove.

   Installation Procedure:

   Courtesy of VINFAST, LLC

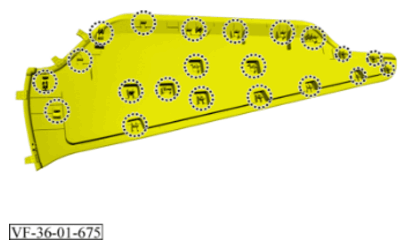

   Installation note: Check all metal clips (1) for damage, replace if necessary.

   Courtesy of VINFAST, LLC

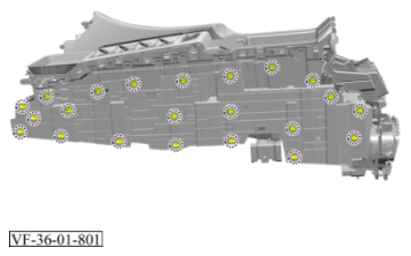

Installation note: Check latching lugs for damage, replace brackets if necessary.

1. Installation is the reverse of removal procedure, noting the following.
2. Install Front Floor Console Side Upper Trim. Refer to FRONT FLOOR CONSOLE SIDE UPPER TRIM REMOVAL AND INSTALLATION/REPLACEMENT
3. Install Front Floor Console Armrest. Refer to FRONT FLOOR CONSOLE ARMREST REMOVAL AND INSTALLATION/REPLACEMENT
