Instrument Panel Upper Trim Panel (Right Side) Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Overview:

Removal Procedure:

1. Remove Multimedia Display Front. Refer to MULTIMEDIA DISPLAY FRONT REMOVAL AND INSTALLATION/REPLACEMENT
2. Remove both screws (1).

   Torque: 3 Nm

3. Carefully unclip the upper trim panel (1) at the marked points (black arrows) using a suitable plastic wedge and remove in the direction of the arrow.

Installation Procedure:

Courtesy of VINFAST, LLC

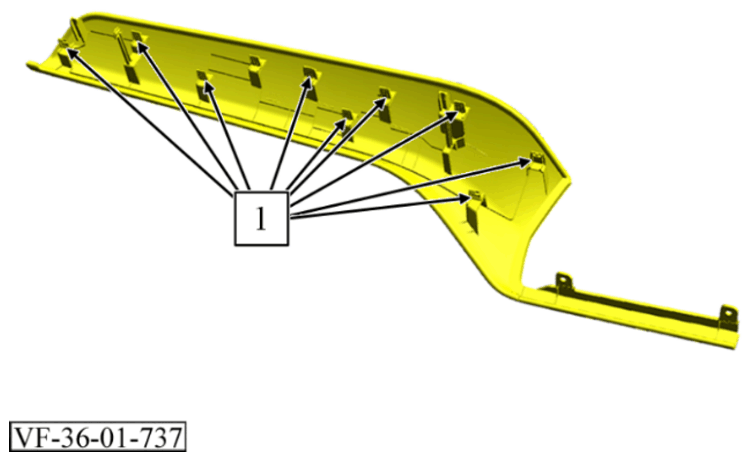

Installation note: Check retaining lugs (1) for damage, replace upper trim panel if necessary.

Installation note: Check clamps (1) for damage, replace clamps if necessary.

1. Installation is the reverse of removal procedure, noting the following. All fasteners must be tightened to torque specification!
2. Install Multimedia Display Front. Refer to MULTIMEDIA DISPLAY FRONT REMOVAL AND INSTALLATION/REPLACEMENT
