Instrument Panel Center Air Outlet Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

Courtesy of VINFAST, LLC

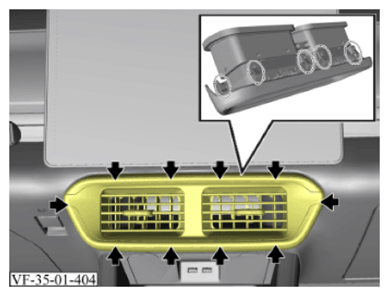

1. Loosen the Air Outlet at the latches (arrows) with a suitable plastic wedge and remove it.

Installation Procedure:

Courtesy of VINFAST, LLC

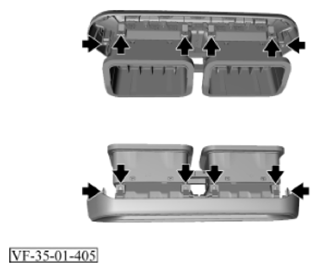

Installation note: Check latches and guide lugs (arrows) for damage before installation.

1. Installation is the reverse of removal procedure.
