Instrument Panel Under Tray Removal And Installation/Replacement (Passenger)

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Disconnect 12 V battery negative cable. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION AND REPLACEMENT

   Courtesy of VINFAST, LLC

2. Remove the screw (1).

   Torque: 2 Nm

3. Remove the plastic clip (2).
4. Fold down the fairing (3) and loosen both latches (4).

   Installation note: The footwell outflow passenger side will also be removed.

   Courtesy of VINFAST, LLC

5. Unlock and disconnect electrical connector (1) of footwell lamp.
6. Remove instrument panel under tray (2).

Replacement Procedure:

Courtesy of VINFAST, LLC

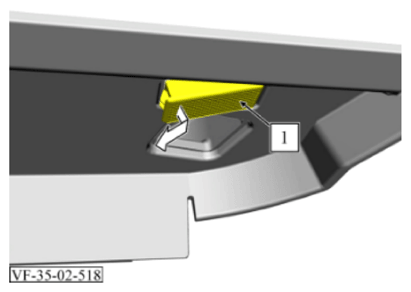

1. Unclip and remove the footwell lamp (1) in the direction of the arrow.

   Courtesy of VINFAST, LLC

2. Remove 2 screws (1).

   Torque: 2 Nm

3. Remove front air outlet duct (2).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

2. Reconnect 12 V battery negative cable. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION AND REPLACEMENT
