Instrument Panel Trim Plate Applique Removal And Installation/Replacement (Driver)

Mobile Repair Possible:  Van/Car

Removal Procedure:

Courtesy of VINFAST, LLC

Removal note: For better visualisation, the removal is depicted with the steering column removed.

1. Adjusting the steering column to the lowest position.

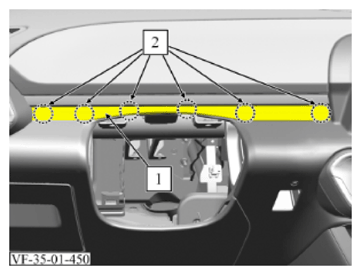

2. Unclip the instrument panel trim plate applique (1) from the clips (2) with a suitable plastic wedge.

Installation Procedure:

1. Installation is the reverse of removal procedure.
