Instrument Panel HMI Trim Cover Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

Courtesy of VINFAST, LLC

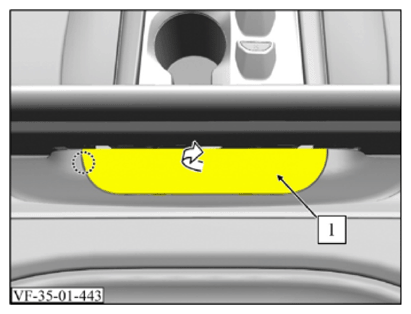

1. Carefully lever the instrument panel HMI trim cover (1) out of its anchorage at the indicated area using a suitable plastic wedge and remove in arrow direction.

Installation Procedure:

Courtesy of VINFAST, LLC

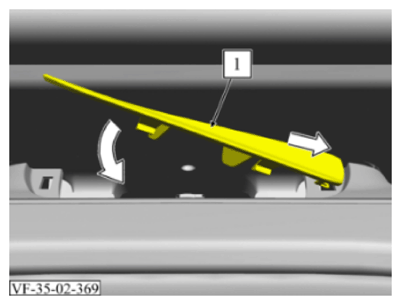

Installation note: Check latches (1) for damage and replace instrument panel HMI trim cover if needed

1. Installation is the reverse of removal procedure, noting the following.

   Courtesy of VINFAST, LLC

2. Hook and swing the HMI trim cover in arrow directions.
