Electric Park Brake Switch Removal And Installation/Replacement

Mobile Repair Possible:  No

Removal Procedure:

1. Disconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
2. Remove instrumental panel lower trim panel. Refer to INSTRUMENT PANEL LOWER TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

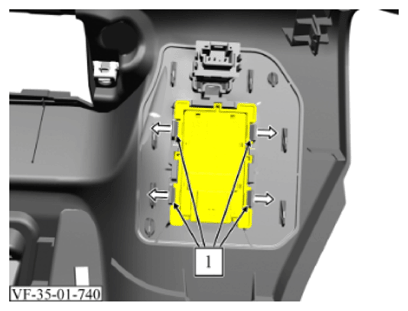

3. Carefully bend the retaining clips (1) in the direction of the arrows to unclip the switch.

   Courtesy of VINFAST, LLC

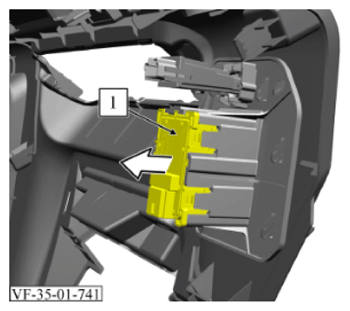

4. Pull the switch (1) in the direction of the arrow to remove it.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.
2. Install instrumental panel lower trim panel. Refer to INSTRUMENT PANEL LOWER TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT
3. Reconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
4. Diagnostics, Programming and Setup. Refer to DIAGNOSTICS, PROGRAMMING AND SETUP USING SCAN TOOL IN SERVICE
