Front Logo Bracket Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

Courtesy of VINFAST, LLC

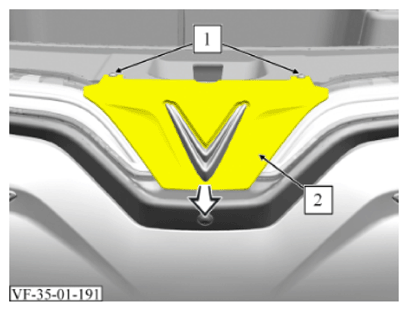

1. Remove 2 screws (1).

   Torque: 2.6 Nm

2. Remove the bracket for the Logo (2) to the front.

Replacement Procedure:

1. Rebuild front hood emblem. Refer to HOOD EMBLEM/NAMEPLATE REMOVAL AND INSTALLATION/REPLACEMENT

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!
