Instrument Panel Compartment Door Dampener Removal And Installation/Replacement

Mobile Repair Possible:  No

Removal Procedure:

1. Remove Instrument Panel Compartment. Refer to INSTRUMENT PANEL COMPARTMENT REMOVAL AND INSTALLATION/REPLACEMENT
2. Remove Instrument Panel Lower Trim Panel. Refer to INSTRUMENT PANEL LOWER TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

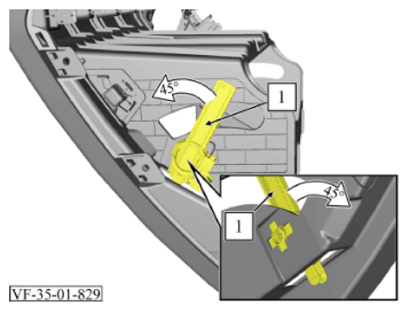

3. Turn damper (1) 45 degrees in arrow direction, guide out and remove.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.
2. Install Instrument Panel Lower Trim Panel. Refer to INSTRUMENT PANEL LOWER TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT
3. Install Instrument Panel Compartment. Refer to INSTRUMENT PANEL COMPARTMENT REMOVAL AND INSTALLATION/REPLACEMENT
