Vacuum Servo (Booster) Unit: Reassembly

To reassemble components to servo unit, reverse disassembly procedures.

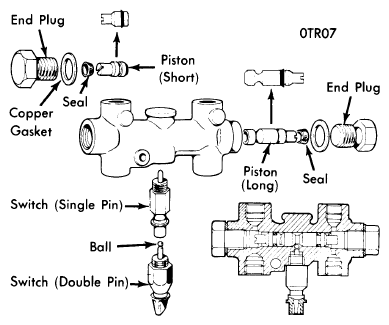

Fig 1: PRESSURE DIFFERENTIAL VALVE

G09349492

Courtesy of NOT AVAILABLE
