Cleaning & Inspection

Clean parts in suitable hydraulic parts cleaning fluid or alcohol and inspect for wear on all components.



Clean all serviceable parts in suitable cleaning fluid or alcohol. Examine cylinder bore for score marks, ridges or corrosion.

NOTE: Discard cylinder body even if only slight imperfections are found.

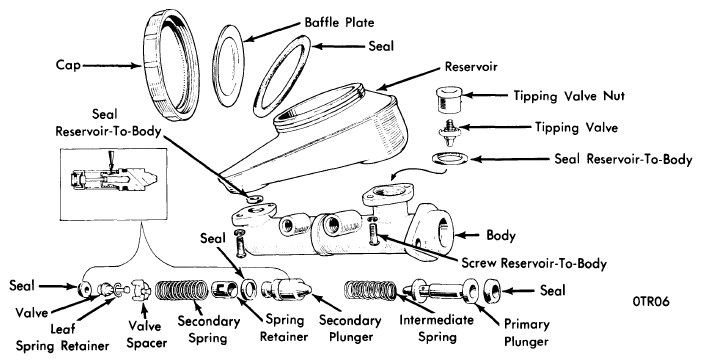

Fig 1: TANDEM PISTON MASTER CYLINDER
G09349490Courtesy of NOT AVAILABLE
