Removal [03/2019 - ]: Procedure
- REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 12
- REMOVE NO. 1 ENGINE COVER
Refer to PROCEDURE - Step 13
- REMOVE IGNITION COIL
Refer to PROCEDURE - Step 3
- REMOVE SPARK PLUG WARNING:
- Hot surfaces.
Risk of burning!
- Perform all work only on components that have cooled down.
- Swirling dirt particles caused by compressed air.
Danger of injury!
- Collect dirt particles, e.g. when blowing out, use cloth to do so.
- Wear safety goggles.
HINT:

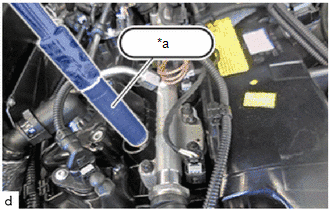

- Clean spark plug slot with compressed air.
- The spark plug shaft must be cleaned using compressed air after having removed the ignition coils and before removing the spark plugs. After having removed the spark plugs, once again check the sealing surface for contamination and (if necessary) clean using a moist cloth or clean using compressed air.
- Deposits that are not removed according to instructions may enter the combustion chamber and lead to uncontrolled combustion. Remaining deposits on the spark plug sealing surfaces may lead to leaks and the spark plugs may come loose during engine operation.
- Spark plug threads must not be greased or oiled. Insufficiently tightened spark plugs may cause leaks and the spark plugs may come loose during engine operation.
- Exclusively swivelling extensions may be used for the reversible ratchet. Rigid mounting tool and variable plug connections with rigid option may not be used; there is a risk that the insulator breaks.
- Hot surfaces.
