Engine Intake / Exhaust System (B58) - Service Information
>>
Turbo Charger Actuator And Link
>>
Components [03/2020 - ]
Components [03/2020 - ]

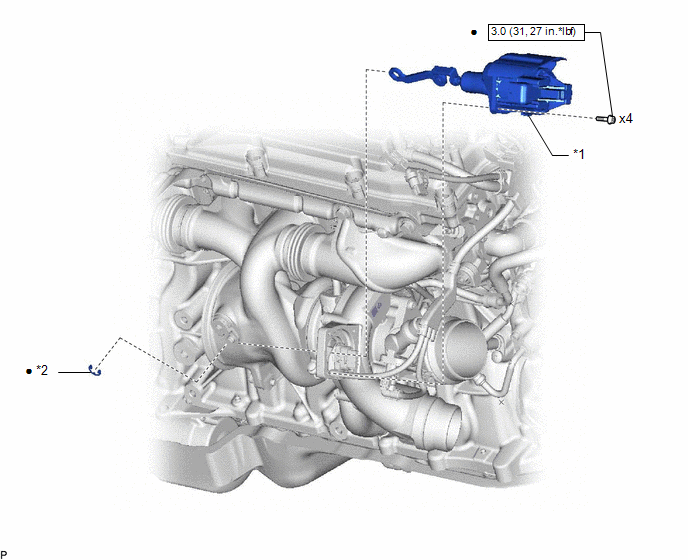

Fig 1: Turbo Charger Actuator And Link Replacement Components [03/2020 - ] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
NO. 2 ENGINE WIRE
-
-

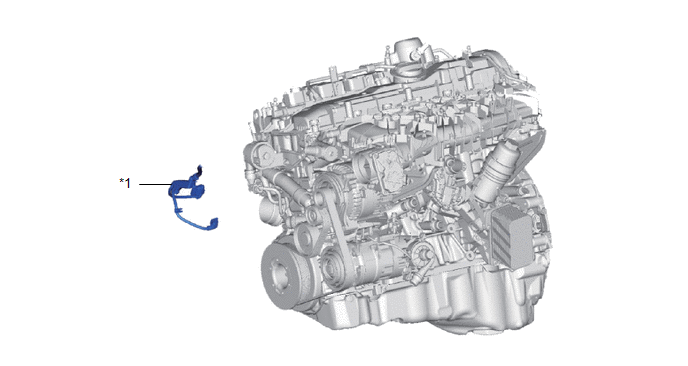

Fig 2: Turbo Charger Actuator And Link Replacement Components [03/2020 - ] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
TURBOCHARGER ACTUATOR AND LINK ASSEMBLY
*2
RETAINING CLIP
N.m (kgf/cm, ft.lbf): Specified torque
•
Non-reusable part
