Removal [03/2020 - ]: Procedure

  1. REMOVE TURBOCHARGER SUB-ASSEMBLY

    Refer to REMOVAL [03/2020 - ]

  2. REMOVE NO. 2 TURBO WATER PIPE SUB-ASSEMBLY
    WARNING:
    • Hot fluids.

      Risk of scalding!

      • Conduct all work in the vehicle wearing appropriate personal protective equipment only.

    HINT:

    Collect and dispose of emerging fluids. Observe country specific waste disposal regulations.

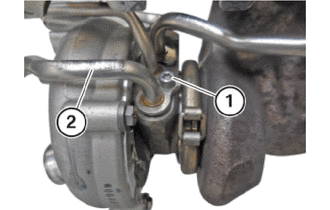

    1. Loosen the screw (1).
      GTY976837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the No. 2 turbo water pipe sub-assembly (2).
