Installation [03/2020 - ]: Procedure

  1. INSTALL NO. 1 TURBO WATER PIPE SUB-ASSEMBLY
    1. Renew O-rings (1) on the coolant feed line (2).
      GTY976836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

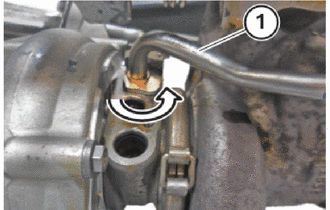

    2. Insert the No. 1 turbo water pipe sub-assembly (1).
      GTY977171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Twist No. 1 turbo water pipe sub-assembly (1) in direction of arrow.
  2. INSTALL INLET TURBO OIL PIPE SUB-ASSEMBLY

    See step  1

  3. INSTALL NO. 2 TURBO WATER PIPE SUB-ASSEMBLY

    See step  1

  4. INSTALL TURBOCHARGER SUB-ASSEMBLY

    Refer to INSTALLATION [03/2020 - ]
