Installation [03/2019 - ]: Procedure

  1. INSTALL OUTLET TURBO OIL PIPE
    1. Replace the O-rings (1) and (2).
      GTY946351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

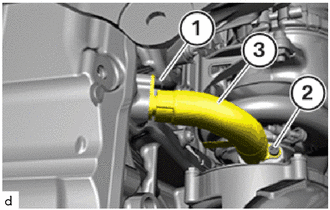

    2. Position the outlet turbo oil pipe (3).
      GTY946350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Tighten down the T30 bolts (1) and (2).

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  2. INSTALL STEERING LINK ASSEMBLY

    Refer to INSTALLATION [07/2020 - ]

  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to INSTALLATION [03/2019 - ]
