Removal [03/2019 - ]: Procedure

  1. REMOVE AIR CLEANER HOSE ASSEMBLY

    Refer to REMOVAL [03/2019 - ]

  2. SEPARATE ELECTRIC WATER PUMP ASSEMBLY

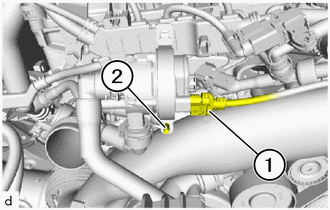

    1. Unlock plug connection (1) and disconnect.
      GTY933321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen nut (2).

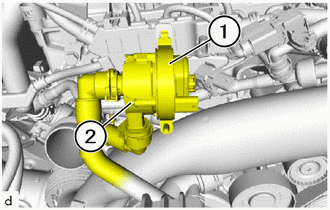

    3. Guide the No. 2 water pump bracket sub-assembly (1) out and remove.
      GTY870856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Separate the electric water pump assembly (2).
  3. REMOVE NO. 2 AIR CLEANER HOSE
    WARNING:
    • Hot surfaces.

      Risk of burning!

      • Perform all work only on components that have cooled down.
    1. Unlock plug connection (1) and disconnect.
      GTY946182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Unlock plug connection (2) and disconnect.
    3. Loosen the T30 bolts (3).

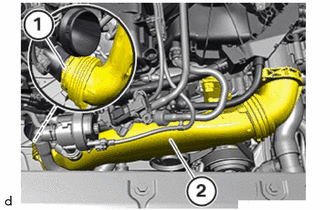

    4. Unlock and loosen clamp (1).
      GTY945905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Guide out and remove No. 2 air cleaner hose (2).
