Components [03/2019 - ]

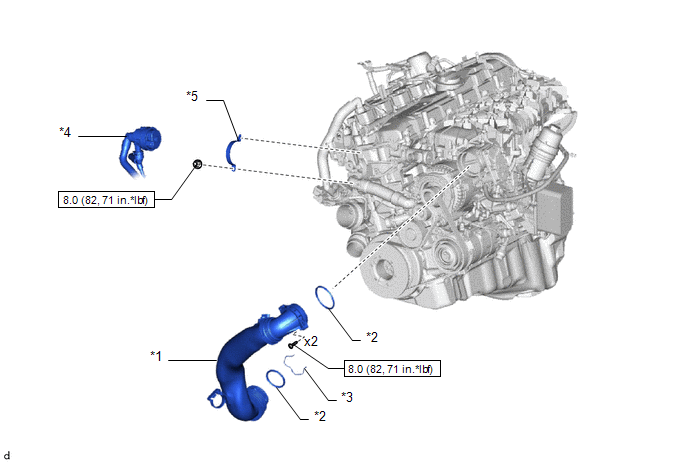

Fig 1: No. 2 Air Cleaner Hose Replacement Components With Torque Specifications
GTY888736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 2 AIR CLEANER HOSE *2 SEALING RING
*3 CLAMP *4 ELECTRIC WATER PUMP ASSEMBLY
*5 NO. 2 WATER PUMP BRACKET SUB-ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque - -
