Removal [03/2019 - ]: Procedure

  1. REMOVE EXHAUST PIPE ASSEMBLY

    Refer to REMOVAL [03/2019 - ]

  2. REMOVE MAIN MUFFLER HEAT INSULATOR LH

    HINT:

    Use the same procedure as for the RH side.

  3. REMOVE MAIN MUFFLER HEAT INSULATOR RH
    1. for RH Side:

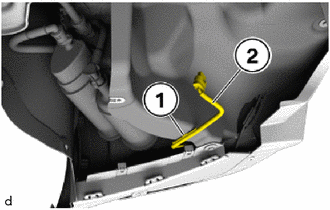

      GTY899588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Unclip the holder (1).
      2. Detach the cable (2) for the actuator with bracket assembly.
    2. Release nuts (1) and screws (2).
      GTY899584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Guide the main muffler heat Insulator RH (3).
  4. REMOVE REAR NO. 2 FLOOR HEAT INSULATOR SUB-ASSEMBLY
    1. Unscrew screws (1) and nuts (2).
      GTY939589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the rear No. 2 floor heat Insulator sub-assembly (3).
  5. REMOVE MAIN MUFFLER HEAT INSULATOR
    1. Loosen nuts (1).

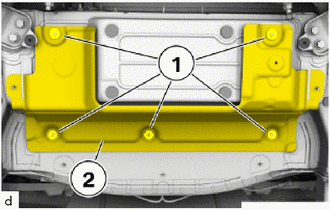

      GTY939503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the main muffler heat insulator (2).
