Components [03/2020 - ]

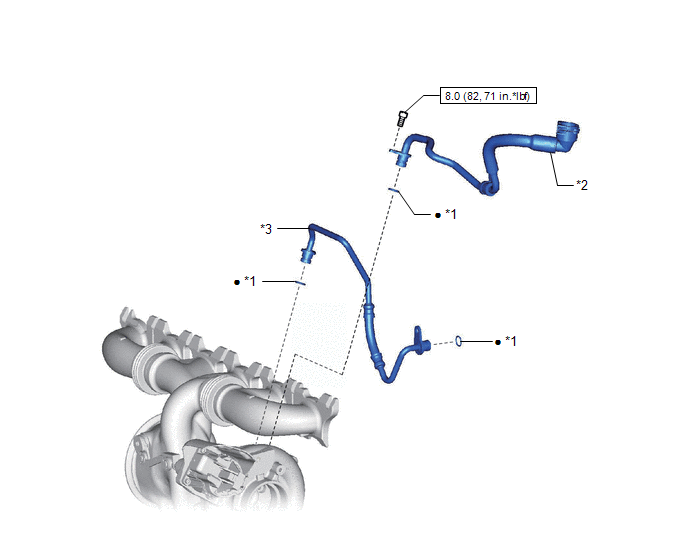

Fig 1: Inlet Turbo Oil Pipe Replacement Components With Torque Specifications [03/2020 - ]
GTY976648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 O-RING *2 NO. 2 TURBO WATER PIPE SUB-ASSEMBLY
*3 INLET TURBO OIL PIPE SUB-ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
