Removal [03/2019 - ]: Procedure

  1. REMOVE AIR CLEANER ASSEMBLY

    Refer to REMOVAL [03/2019 - ]

  2. REMOVE HEADLIGHT ASSEMBLY RH

    Refer to REMOVAL [03/2019 - ]

  3. REMOVE INLET NO. 2 AIR DUCT
    1. Detach the front section of the inlet No. 1 air duct (1) at clips (2) and work out of the guides (3).
      GTY945908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

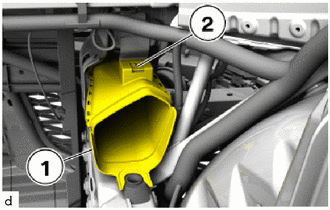

    2. Work the rear section of the inlet No. 2 air duct (1) from the guide (2) and remove.
      GTY946215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
