Installation [03/2019 - ]: Procedure

  1. INSTALL INLET NO. 2 AIR DUCT
    1. Pull the rear section of the inlet No. 2 air duct into the guide.

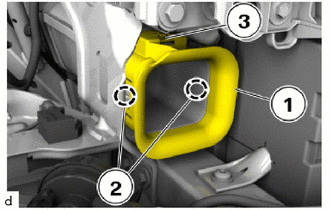

    2. Pull the front section of the inlet No. 1 air duct (1) into the guide (3) and clip into the clips (2).
      GTY945908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL HEADLIGHT ASSEMBLY RH

    Refer to INSTALLATION [03/2019 - ]

  3. INSTALL AIR CLEANER ASSEMBLY

    Refer to INSTALLATION [03/2019 - ]
