Components [03/2020 - ]

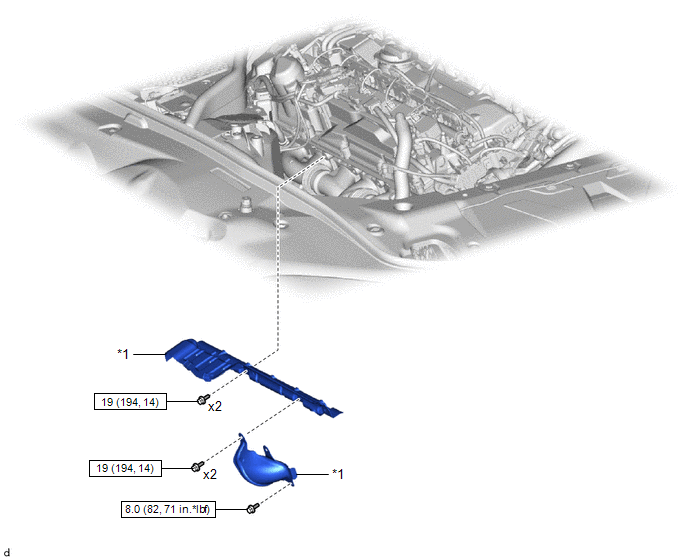

Fig 1: Exhaust Manifold Heat Insulator Replacement Components With Torque Specifications [03/2020 - ]
GTY998595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 EXHAUST MANIFOLD HEAT INSULATOR - -
N.m (kgf/cm, ft.lbf): Specified torque - -
