Components [03/2019 - ]

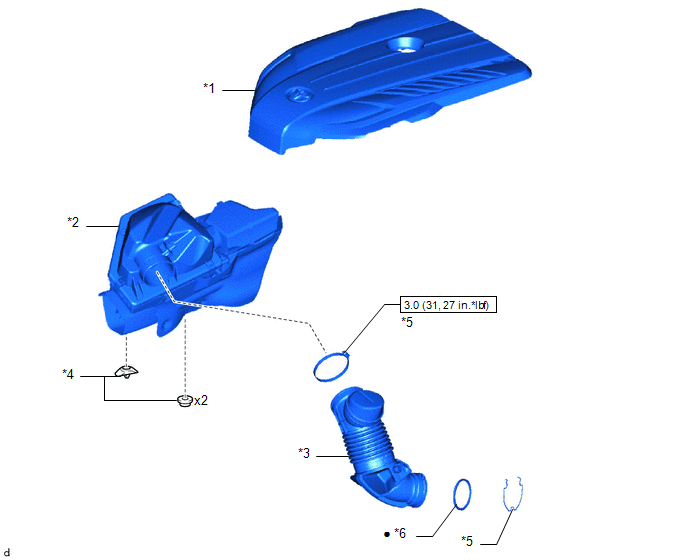

Fig 1: Air Cleaner Hose Replacement Components With Torque Specifications
GTY934751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 ENGINE COVER SUB-ASSEMBLY *2 AIR CLEANER ASSEMBLY
*3 AIR CLEANER HOSE ASSEMBLY *4 AIR CLEANER SUPPORT
*5 CLAMP *6 GASKET
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
