Removal [07/2020 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for B58)

    Refer to REMOVAL [03/2019 - ]

  2. REMOVE FRONT CONSOLE BOX

    Refer to REMOVAL [07/2022 - ]

  3. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY
    NOTE:
    • Electrostatic discharge.

      Damage to or destruction of electrical components.

      • Only touch the housings of electrical components. Do not touch pins or multi-pin connectors directly.
      • For additional information see:

        Refer to PRECAUTION [03/2019 - ]

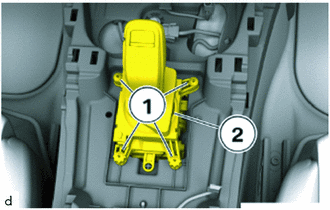

    1. Loosen the T20 bolts (1).
      GTY926679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Lift the transmission floor shift assembly (2).

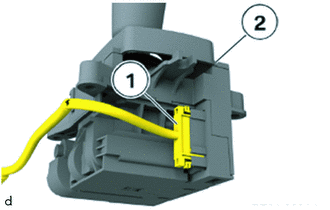

    3. Unlock plug connection (1) and disconnect.
      GTY840476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the transmission floor shift assembly (2).
