Removal [03/2019 - ]: Procedure

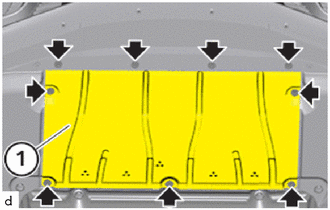

  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
    1. Remove screws (arrows).
      GTY946249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the No. 1 engine under cover assembly (1).

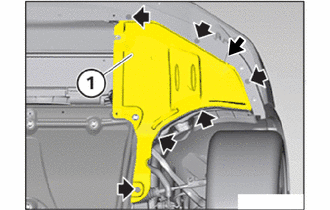

  2. REMOVE FRONT FENDER SPLASH FRONT SHIELD LH
    1. Remove screws (arrows).
      GTY1159777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Feed out the front fender splash front shield LH (1) to the side and remove.
  3. REMOVE FRONT FENDER SPLASH FRONT SHIELD RH

    HINT:

    Use the same procedure as for the LH side.

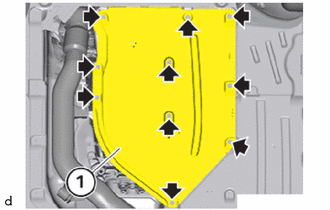

  4. REMOVE FRONT FLOOR COVER
    1. Remove screws (arrows).
      GTY946250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the front floor cover (1).

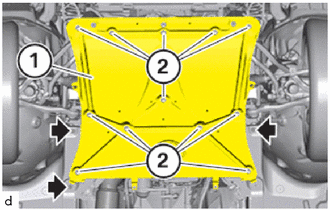

  5. REMOVE FRONT SUSPENSION MEMBER LOWER PROTECTOR
    1. Remove screws (arrows).
      GTY946257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen the 16 mm bolts (2).
    3. Remove the front suspension member lower protector (1).
