Removal [03/2019 - ]: Procedure

  1. REMOVE CONSOLE SIDE PANEL

    Refer to PROCEDURE - Step 4 [07/2022 - ]

  2. REMOVE CONSOLE PANEL AND CONSOLE PANEL RETAINER

    Refer to PROCEDURE - Step 5 [07/2022 - ]

  3. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL

    Refer to PROCEDURE - Step 6 [07/2022 - ]

  4. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

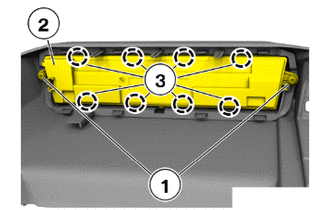

    1. Remove the T20 screws (1).
      GTY916053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage air conditioning control assembly (2) at the claws (3) with a suitable tool and remove.
