Removal [03/2019 - ]: Procedure

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to REMOVAL [03/2019 - ]
REMOVE FRONT SUSPENSION MEMBER LOWER PROTECTOR
Refer to REMOVAL [03/2019 - ]

REMOVE OIL PAN COVER

NOTE:

Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave electrical components in original packaging until just before they are installed. Use the original packaging only for any return shipments. Always package removed components straight away.
- Only touch the housings of electrical components. Do not touch pins or multi-pin connectors directly.
- Anti static work clothing and antistatic shoes (with ESD symbol).
- For additional information see:
  Refer to PRECAUTION [03/2019 - ]

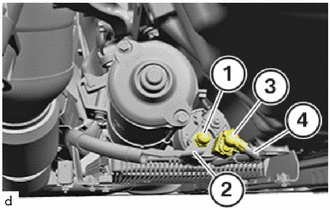

Unfasten nut (1).

GTY945965

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove starter wiring assembly (2) from starter assembly.
Unlock connector (3) and disconnect.
Remove the transmission wire (4) for terminal 50 from the starter assembly.

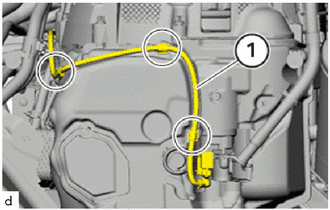

Unclip the transmission wire (1) from the oil pan cover in the marked areas.

GTY946102

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

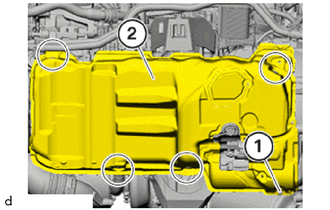

Remove the clip (1).

GTY945886

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the clips in the marked areas.
NOTE:
- Bending of plastic parts.
  Application of too much force can lead to bending of plastic parts.
  - Place special tool directly beside the mounting clip.
  - Continue unclipping the part without using the tool if possible.
Slightly lower the oil pan cover (2), slide forward and place it on the front axle support.

REMOVE STARTER ASSEMBLY

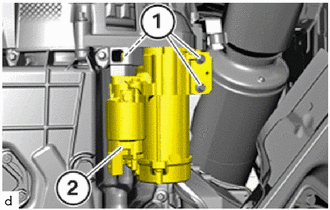

Loosen E10 bolts (1).

GTY946394

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the starter assembly (2).

REMOVE STARTER COVER
1. Remove the starter cover from the starter assembly.
