Removal [03/2019 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12

  2. REMOVE AIR CLEANER ASSEMBLY

    Refer to REMOVAL [03/2019 - ]

  3. REMOVE AIR CLEANER HOSE ASSEMBLY
    WARNING:
    • Hot surfaces.

      Risk of burning!

      • Perform all work only on components that have cooled down.
    1. Unlock the ventilation pipe sub-assembly (1) and release from the air cleaner hose assembly.
      GTY946185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen clamp (2).
    3. Unlock and loosen clamp (3).
    4. Feed out air cleaner hose assembly (4) and remove.
  4. REMOVE COVER CAP

    HINT:

    Perform this procedure only when reused of the air cleaner hose assembly is necessary.

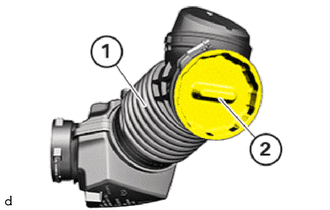

    1. Remove the cover cap (2) of the air cleaner hose assembly (1) before installation.
      GTY946184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
