Removal [03/2019 - ]: Procedure

  1. REMOVE AIR CLEANER ASSEMBLY

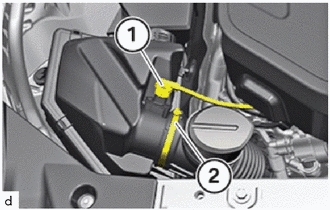

    1. Unlock plug connection (1) and disconnect.
      GTY946194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Unfasten clamp (2).

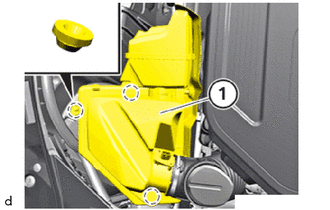

    3. Release the air cleaner assembly (1) towards the top from the air cleaner supports (marks) and remove.
      GTY946193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
