Removal [03/2019 - ]: Procedure

  1. REMOVE FRONT CONSOLE BOX COVER

    Refer to REMOVAL [03/2019 - ]

  2. REMOVE MOBILE WIRELESS CHARGER CRADLE ASSEMBLY
    NOTE:
    • Electrostatic discharge.

      Damage to or destruction of electrical components.

      • Leave electrical components in original packaging until just before they are installed. Use the original packaging only for any return shipments. Always package removed components straight away.
      • Only touch the housings of electrical components. Do not touch pins or multi-pin connectors directly.
      • Antistatic work clothing and antistatic shoes (with ESD symbol).
      • For additional information see:

        Refer to PRECAUTION [03/2019 - ]

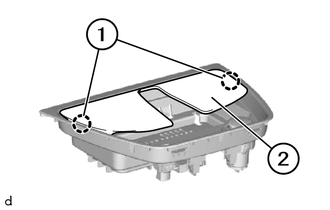

    1. Detach the guides (1) to remove the upper console cover (2).
      GTY897355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

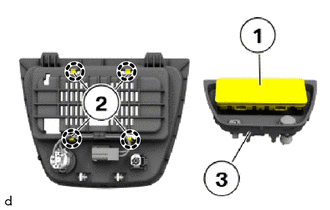

    2. Detach the claws (2) to remove the mobile wireless charger cradle assembly (1) from the front console box cover (3).
      GTY893798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
