Removal [03/2019 - ]: Procedure

  1. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to REMOVAL [07/2022 - ]

  2. REMOVE ELECTRIC PARKING BRAKE SWITCH ASSEMBLY

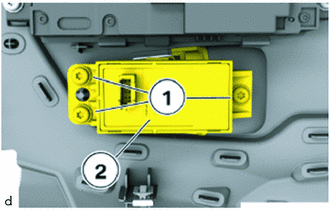

    1. Loosen T20 screws (1).
      GTY840477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove electric parking brake switch assembly (2).
