Removal [03/2019 - ]: Procedure

  1. REMOVE VANITY LIGHT ASSEMBLY

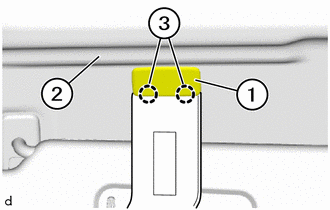

    1. Using a molding remover D, detach the claws (3) to remove the vanity light assembly (1) from roof headlining assembly (2).
      GTY903228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

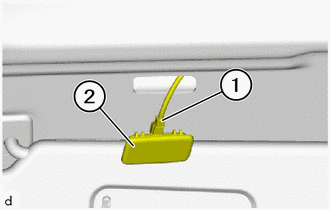

    2. Unlock and disconnect connector (1).
      GTY940513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove vanity light assembly (2).
