Removal [03/2019 - ]: Procedure

  1. REMOVE VISOR ASSEMBLY

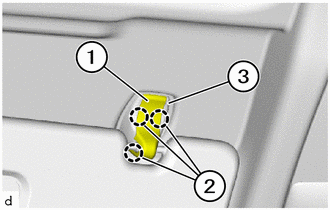

    1. Detach the claws (2) to pull out the visor holder cover (1) from the visor holder (3).
      GTY940515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

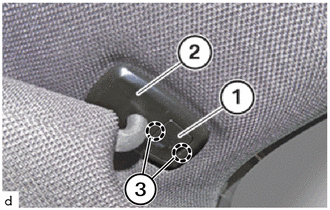

    2. Detach the claws (3) to pull out the cover (1) from the visor assembly (2).
      GTY903231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

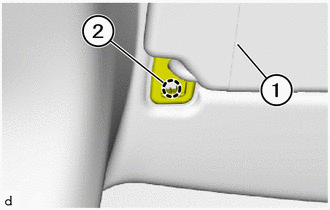

    3. Detach the clip (2) to remove visor assembly (1).
      GTY903238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Unlock plug connection and disconnect.
